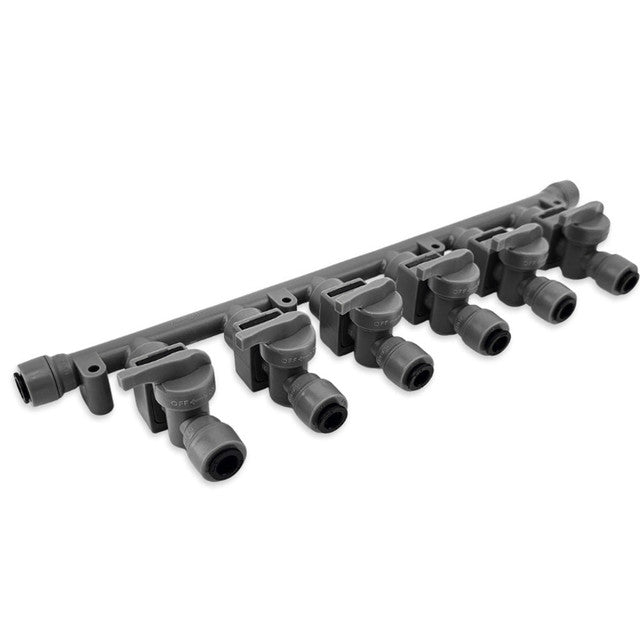

Duotight 8mm x 6-Way Manifold with Check & Isolation Valves (KL46244)

This manifold splits one line into six, each with a check valve. The check valve can also be removed if you want gas or water to move freely in both directions.

If you want to cap off certain lines, we would recommend using the Duotight 8mm (5/16) plug.

Using a thin flat headed screw driver, simply slide/pop the black retainer tabs and remove the ball valve.

The Duotight 8mm 6-way manifold is ready with mounting capabilities out of the box using button head screws. But if you're going to mount it on a kegerator, we would suggest using the Duotight 8mm adhesive brackets (no drilling required).

(not suitable for liquids other than filtered water)

Looking for high quality push in fittings that will seal tight?  Duotight are the push in fitting with superior sealing capacity due to the double o-ring sealing design.

Compatible with:

EVABarrier 4mm ID x 8mm OD Line

EVABarrier 5mm ID x 8mm OD Line

Red EVABarrier 5mm ID x 8mm OD Line

Black Lightshield EVABarrier 4mm ID x 8mm OD Line

Not compatible with 6.3mm ID x 9.5mm OD line

No clamps necessary!
We do recommend cutting your hosing straight, not on an angle, to ensure the line has a complete seal. To remove the fitting simply push in the collet and the hose can be removed. These push in fittings are suitable to be used up to 100 psi.

These push-in fittings have been engineered for maximised performance in both gas and liquid applications. Compared to other push-in fittings on the market, Duotight takes the double safety approach to all of the connections with two EPDM o-rings per hose port. No other push-ins on the market have EPDM o-rings, let alone two! per push-in connection.

These push in fittings are suitable to be used up to 100 psi.

Compared to other push in fittings on the market, Duotight takes the double safety approach to all of the connections with two EPDM o-rings per hose port.
